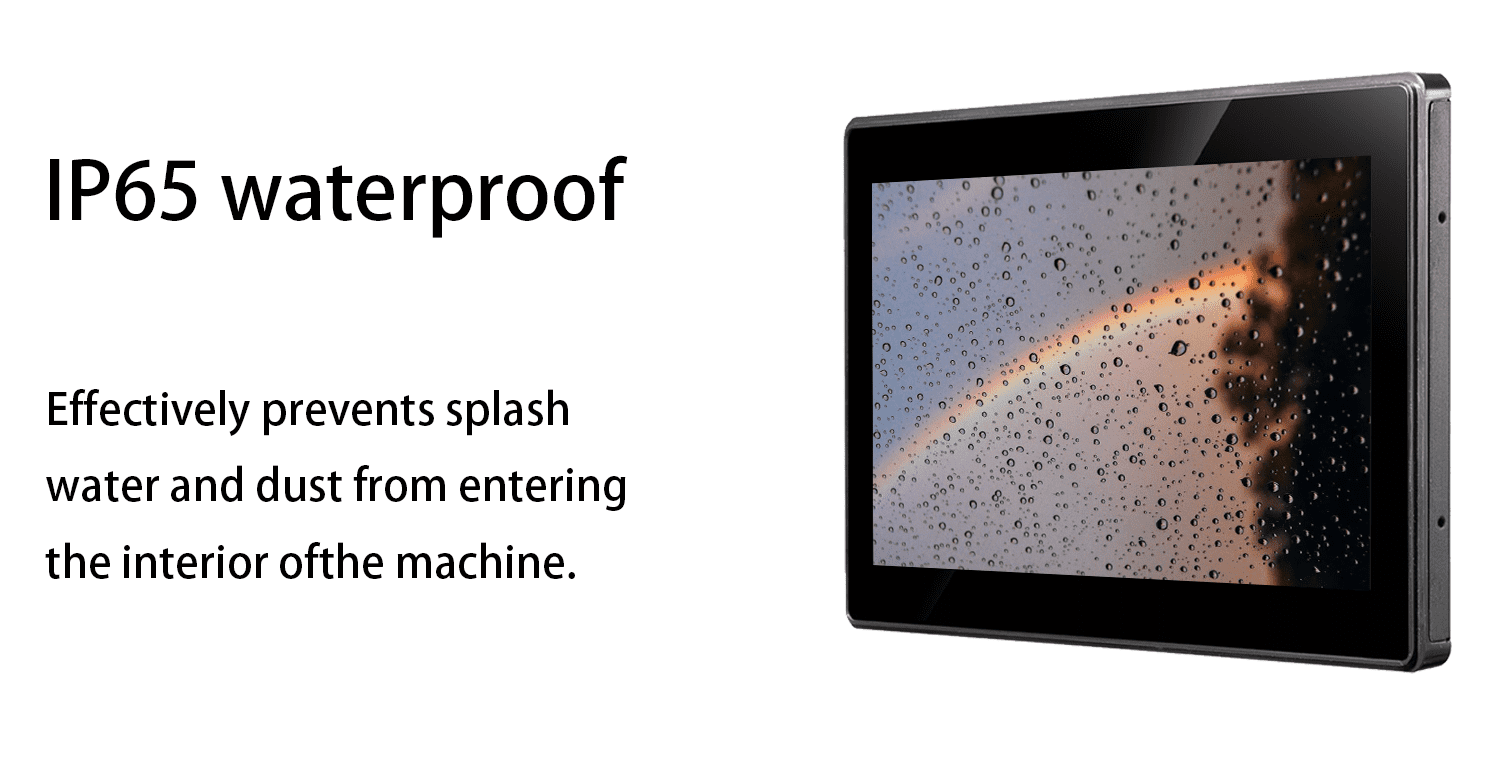

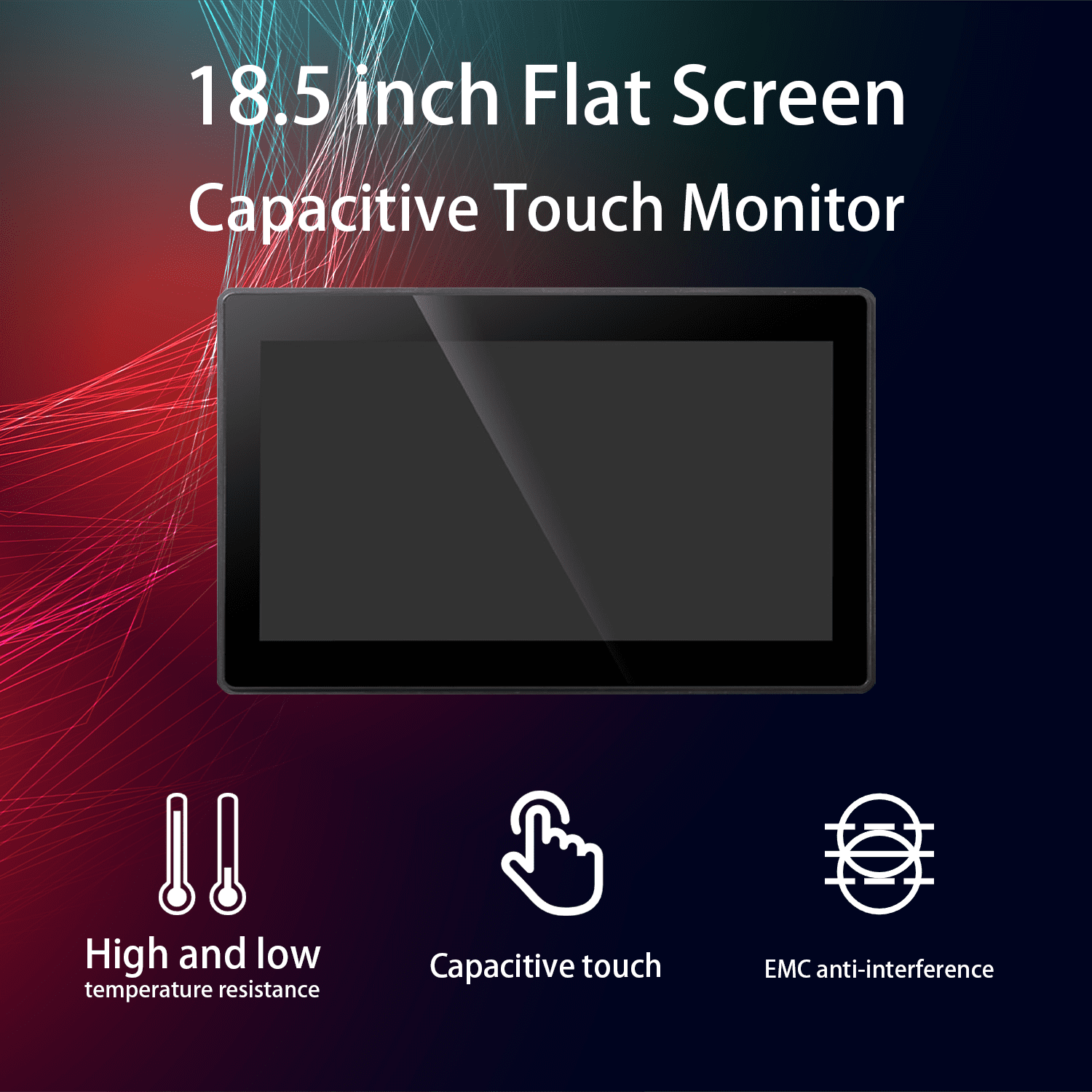

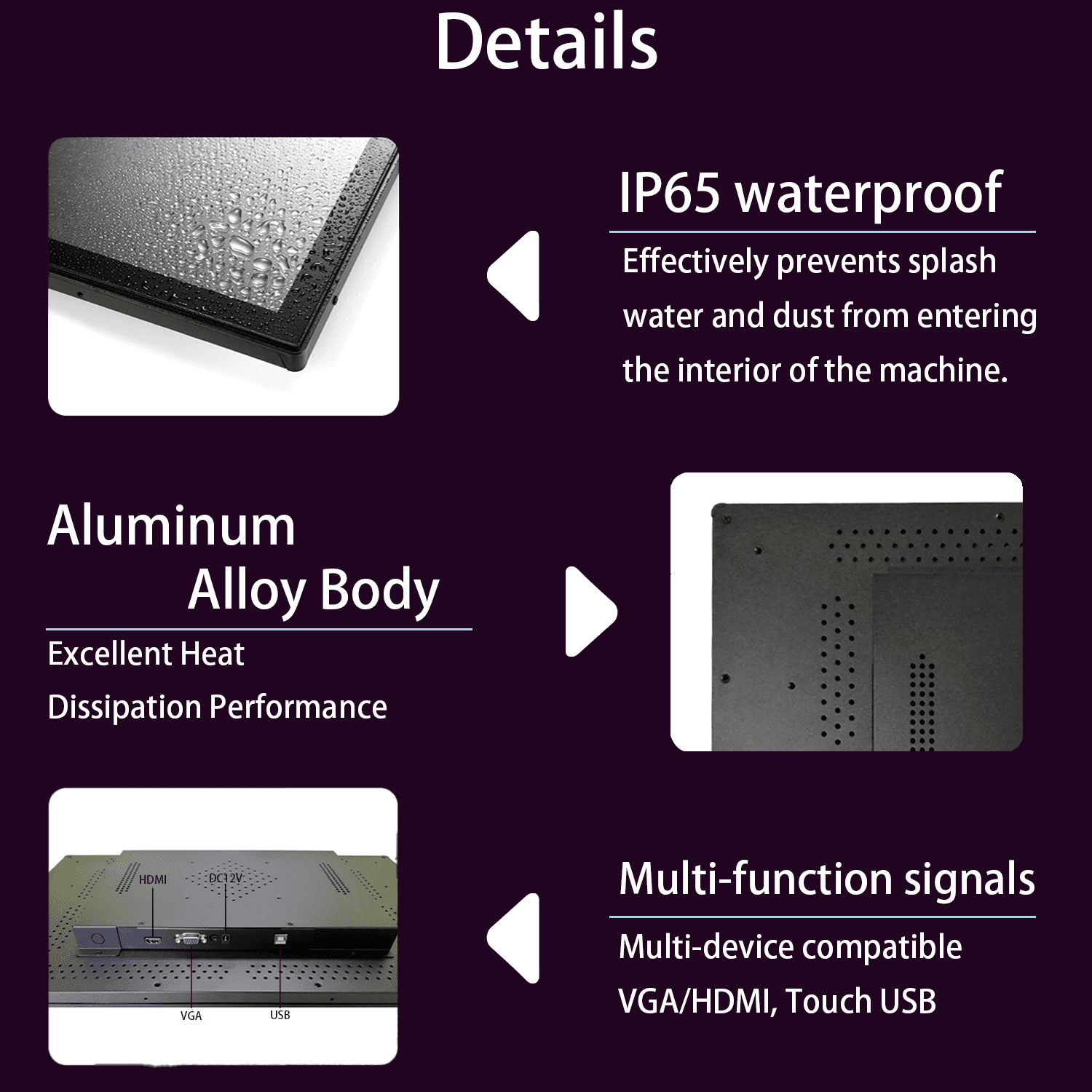

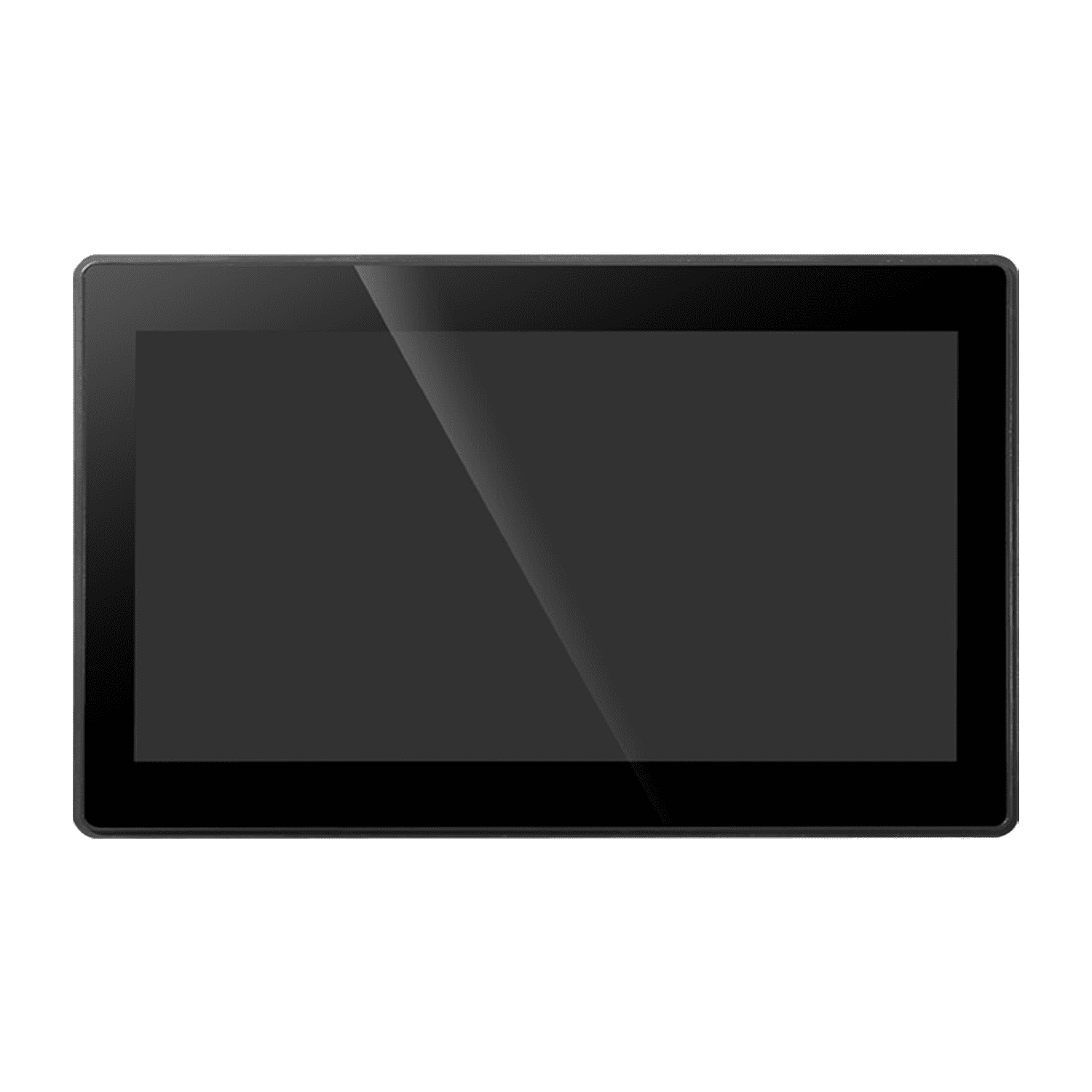

IP65 Waterproof Open Frame Industrial Capacitive HD-MI Input 18.5 inch Touch Screen Monitor

Size:18.5 inch
Panel Ratio :16:9
Resolution:1366*768
Luminance: 300cd/m²
Interface:HDMI/VGA/USB for touch
Touch type :capacitive

EMAIL

Part No.

VV-185T

Display   Size

18.5   inch

Display   Resolution

1366*768

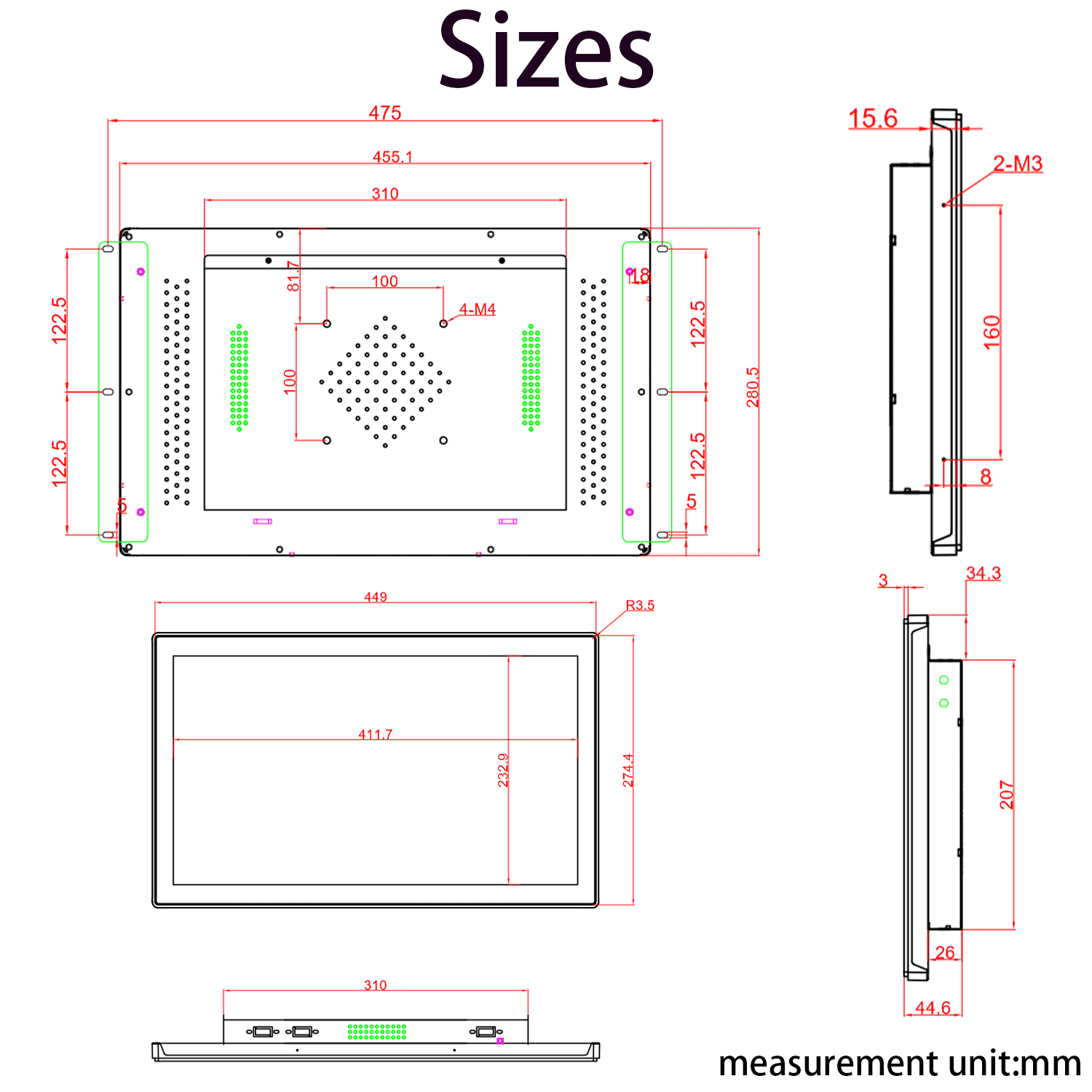

Display   Active Area

409.8(H)*230.4(V)   mm

Display   Ratio

16:9

Display colors

16.7M

Viewing Angle range

89/89/89/89

Contrast   Ratio

1000:1

Backlight   Brightness

250   cd/m2

Touch   Type

Capacitive   10 point touch

Touch   Controller

ILITEK   ILI2510

Touch   Channel

96   channels

Cover   Glass Thickness

1.8   mm

Surface   Hardness

6h

Built-in   Speakers

2*8

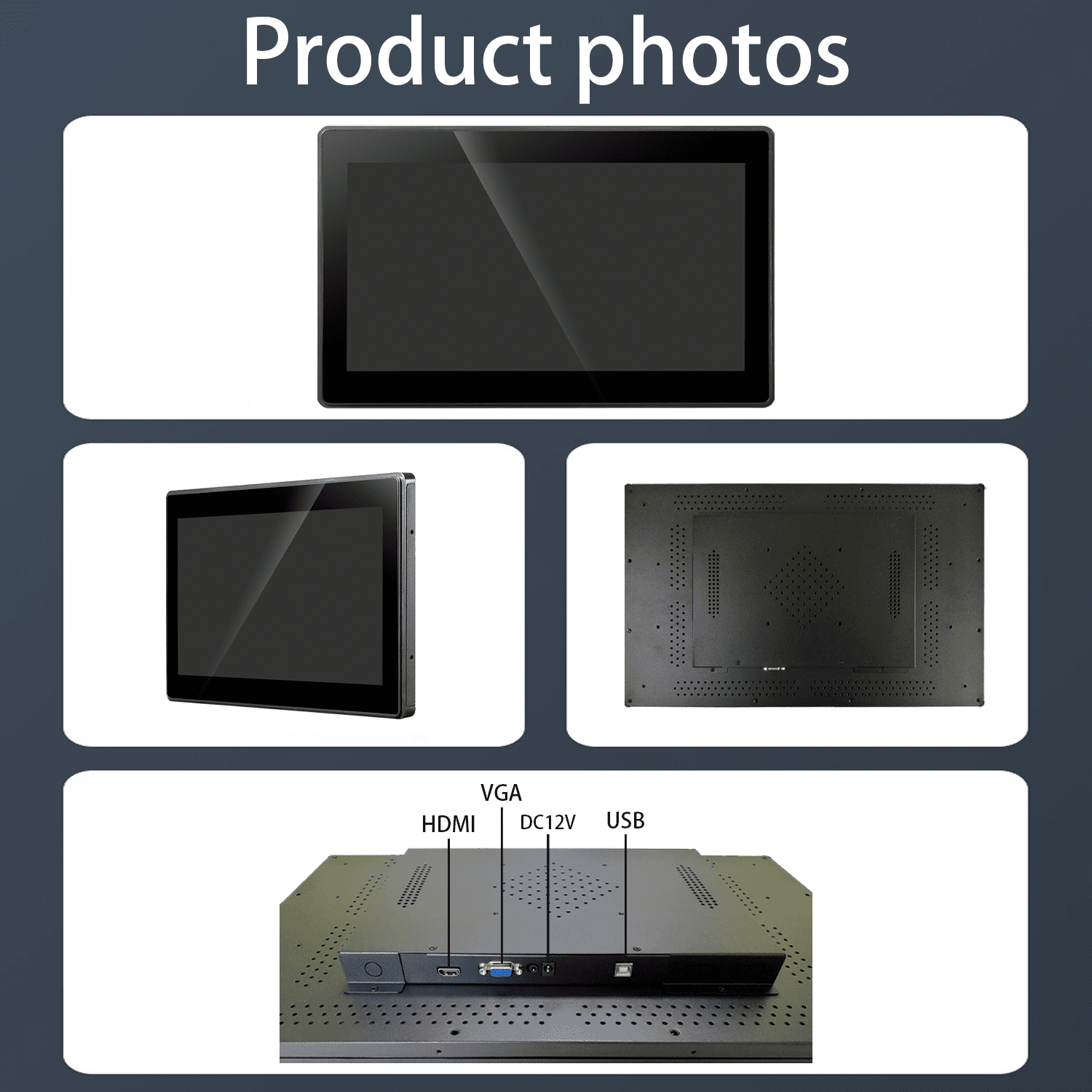

Interfaces

1*VGA   input

1*HDMI   input

1*USB   TYPE A OR TYPE B TOUCH INPUT

12   V DC

Packing   list

1*HDMI   cable or Vga cable

1*   USB TYPE B cable

1*   3.3A Power   adapter

1*   Power adapter   cable

Packing   Info

Net   weight:3.3kg

Package   dimension:55.5*38.5*13 cm

Gross   weight:4.3kg

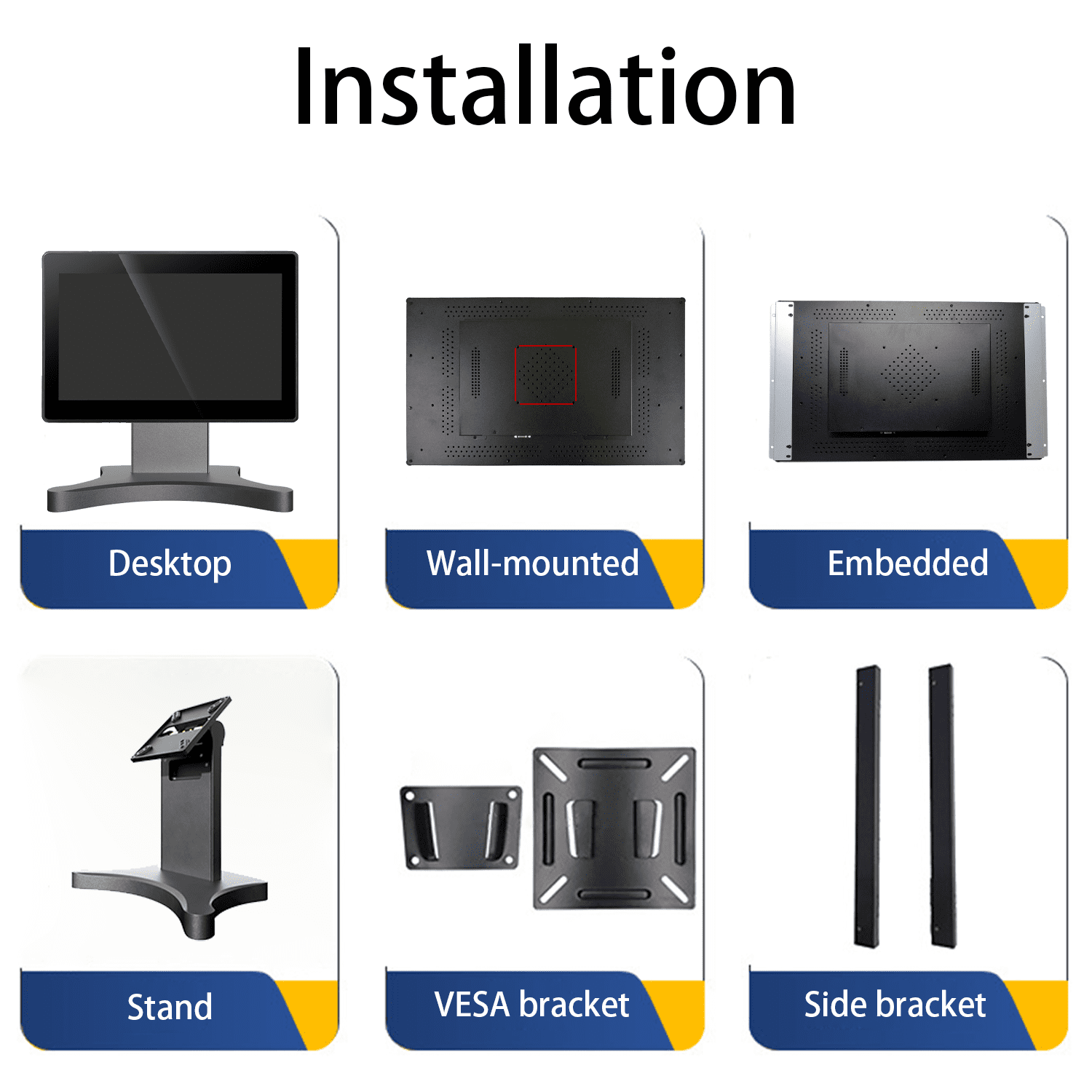

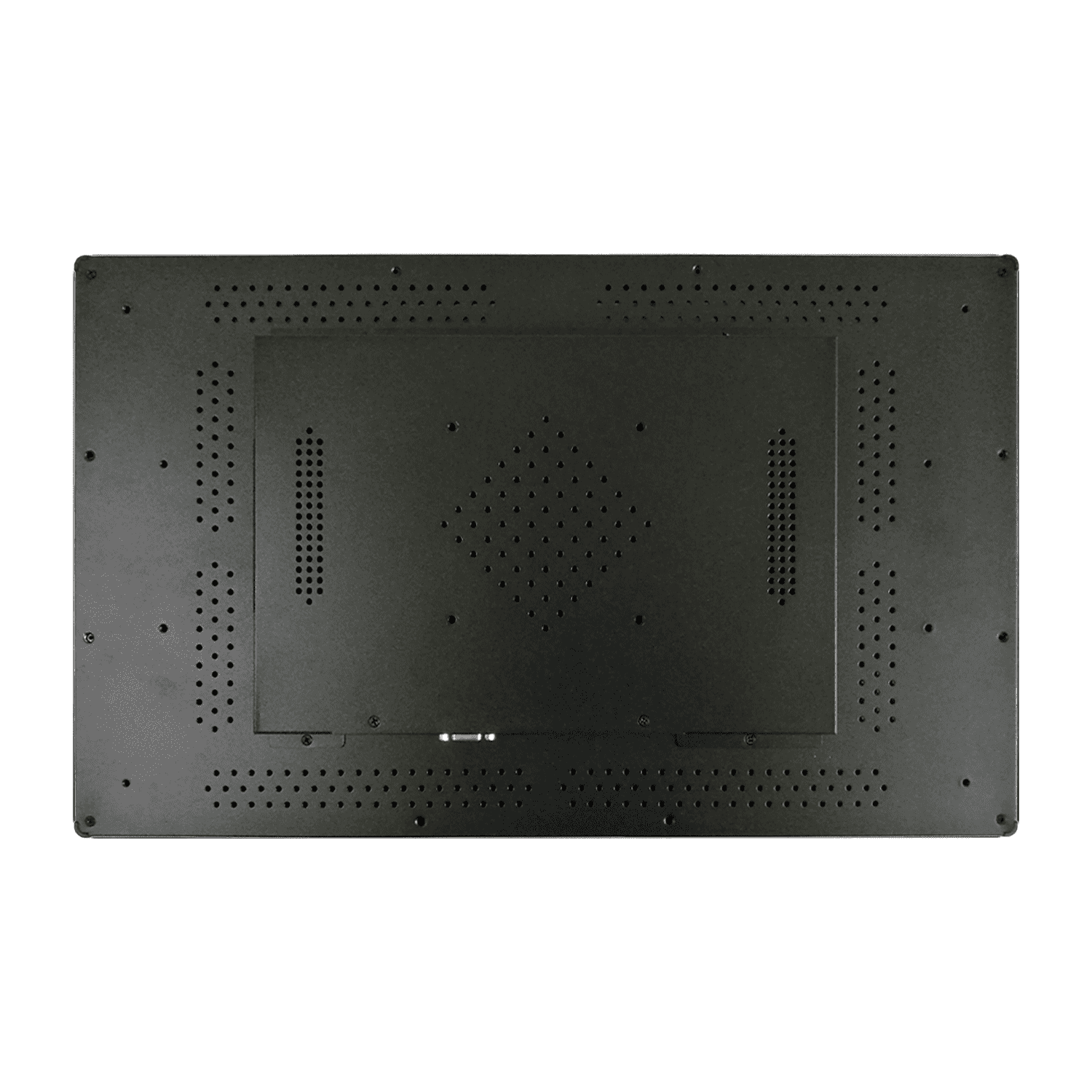

VESA mount brackets

100*100mm
